高压液压接头在复杂的液压系统中起着非常关键的作用，特别是在用于复杂多变操作的大型设备中。这些配件用于完成一个液压回路的各种功能，对于同一设备的多个操作非常方便。配件通常用于给液压回路提供弯曲或接头；它可以弯曲到45度或90度，也可以仅用于小接头或提供旋转功能。
| 液压接头 | 名称 | 型号 |
|---|---|---|
 | 英管外螺纹60°内锥面 BSP Male 60° cone seat | 12611 |
 | 英管外螺纹60° 内锥面或六角端面组合垫密封的双用接头 BSP male double use for 60° cone seat or bonded seal | 12611A |
 | 英锥管外螺纹平面 BSP Male Flat Seat | 13011(A) |
 | 英锥管外螺纹 BSP Male | 13011 |
 | 美制ORFS外螺纹平面O形圈密封 ORFS Male O-RING Seal | 14211 |
 | 美制JIC外螺纹74° 外锥面 JIC Male 74°Cone | 16711 |
 | 布锥管外螺纹 NPT Male | 15611 |
 | 日本公制外螺纹60° 外锥面 JIS Metric Male 60° Cone Seal | 18611 |
 | 公制外螺纹90°外锥面 Metric 90° Cone | 10811L |
 | 布锥管旋转外螺纹 Npt Swivel Male | 15611SW |
 | 公制外螺纹24° 内锥面轻/重系列 Metric Male24° Cone Seat L.T./H.T. | 10411/10511 |
 | 公制内螺纹24°锥带O型圈轻系列 Metirc Female24° Cone O-Ring L.T. | 20411T |
 | 45°公制内螺纹24°锥带O型圈轻系列 45°Metric Female24°Cone O-Ring L.T. | 20441T |
 | 90°公制内螺纹24°锥带O型圈轻系列 90°Metric Female24°Cone O-Ring L.T. | 20491T |
 | 公制内螺纹24°锥带O型圈重系列 Metric Female24°Cone O-Ring H.T | 20511T |
 | 90°公制内螺纹24°锥带O型圈重系列 90° Metric Female24° Cone O-Ring H.T | 20591T |
 | 美制JIC内螺纹74°内锥面 JIC Female74° Cone Seat | 26711 |
 | 45°美制JIC内螺纹74°内锥面 45° JIC Female74° Cone Seat | 26741 |
 | 90°美制JIC内螺纹74°内锥面 90° JIC Female74° Cone Seat | 26791 |
 | 英管内螺纹60°外锥面 BSP Female60° Cone | 22611 |
 | 45°英管内螺纹60°外锥面 45° BSP Female60° Cone | 22641 |
 | 90°英管内螺纹60°外锥面 90° BSP Female60° Cone | 22691 |
 | 美制ORFS内螺纹平面 ORFS Female Flat Seat | 24211T |
 | 45°美制ORFS内螺纹平面 45° ORFS Female Flat Seat | 24241T |
 | 90°美制ORFS内螺纹平面 90° ORFS Female Flat Seat | 24291 |
 | 英管内螺纹60°外锥面双六角 BSP Female 60° ConeDouble Hexagon | 22611D |
 | 美制JIC内螺纹74°内锥面双六角 JIC Female 74° Cone Seat Double Hexagon | 26711D |
 | 美制ORFS 内螺纹平面双六角 ORFS Female Flat Seat Double Hexagon | 24211D |
 | 日本公制内螺旋60°内锥面 JIS Metric Female 60° Cone Seat | 28611 |
 | 日本英制内螺旋60°内锥面 JIS Gas Female 60° Cone Seat | 29611 |
 | 美制JIC内螺纹74°内锥面双六角 45° JIC Female 74° Cone Seat Double Hexagon | 26741D |
 | 美制一体式接头 Crimp Style Hydraulic Hose Fitting | 26711Y |
 | 90°美制一体式接头 90°Crimp Style Hydraulic Hose Fitting | 26791Y |
 | 90°美制一体式接头加长 90°Crimp Style Hydraulic Hose Fitting | 26791Y-L |
 | 帕克连体 Paker Standard | P20491 |
 | 公制内螺纹60°外锥面 Metric Female 60° Cone | 20611T |
 | 90°公制内螺纹60°外锥面 90° Metric Female 60° Cone | 20691T |
 | 国标公制内螺纹平面 Metric Female Flat Seat | 20211T |
 | 45°国标公制内螺纹平面 45°Metric Female Flat Seat | 20241T |
 | 90°国标公制内螺纹平面 90°Metric Female Flat Seat | 20291T |
 | 公制内螺纹74°内锥面 Metric Female 74° Cone Seat | 20711T |
 | 45°公制内螺纹74°内锥面 45°Metric Female 74° Cone Seat | 20741T |
 | 90°公制内螺纹74°内锥面 90°Metric Female 74° Cone Seat | 20791T |
 | SAE 法兰 3000PSI/6000PSI SAE Flange 3000PSI/6000PSI | 87312 87612 |
 | 45°SAE 法兰 3000PSI/6000PSI 45°SAE Flange 3000PSI/6000PSI | 87342 87642 |
 | 90°SAE法兰 3000PSI/6000PSI 90°SAE Flange 3000PSI/6000PSI | 87392 87692 |
 | 90°SAE法兰 3000PSI加长 90°SAE Flange 3000PSI | 87392L |
 | SAE法兰 9000PSI SAE Flange 9000PSI | 87992 |

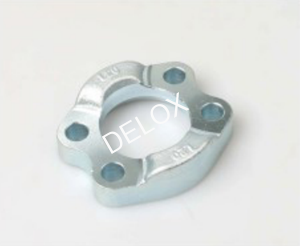

 | SAE 连体法兰夹 3000PSI/6000PSI SAE Flange Clamps 3000PSI/6000PSI | FL SW |

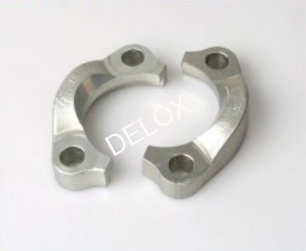

 | SAE 对开法兰夹 3000PSI/6000PSI SAE Split Flange Clamps 3000PSI/6000PSI | FL FS |

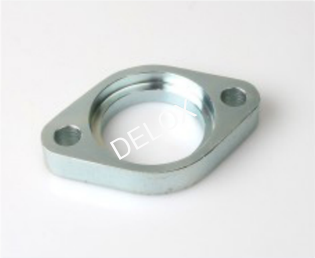

 | 菱形法兰 Rhombic Flange Clamps | TX001 |

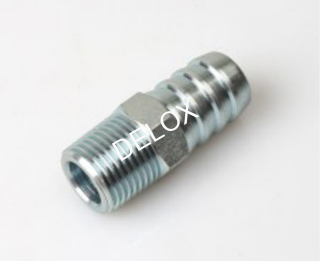

 | 低压外丝 Low Pressure Male Fitting | TX004 |

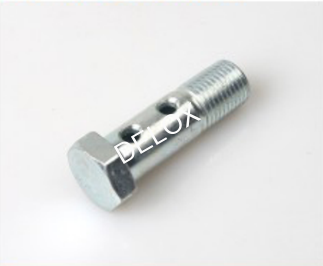

 | 公制铰接螺栓 双孔 Metric Bolt | 700M 双孔 |

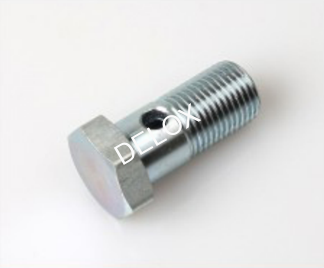

 | 公制铰接螺栓 Metric Bolt | 700M |

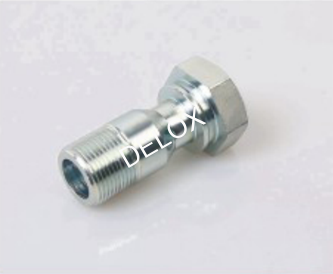

 | 部标公制铰接螺栓 JB Metric Bolt | 710M |

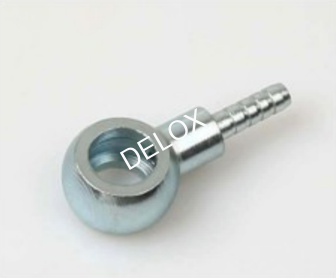

 | 低压圆球 Low Pressure Metric Banjo | TX002 |

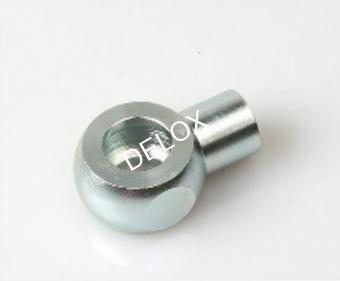

 | 焊接圆球 Welding Banjo Fitting | TX003 |

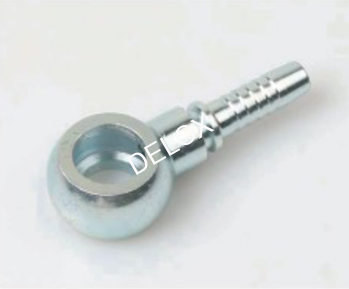

 | 公制铰接体 Metric Banjo | 70011 |

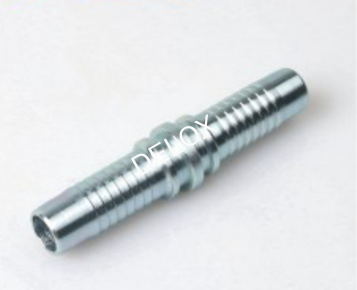

 | 双面连接芯 Double Connector | 90011 |

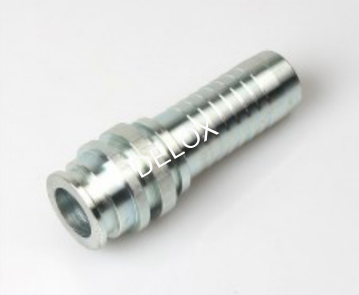

 | SAE标准矿用接头 SAE Staplelok Male SAE | 67011 |

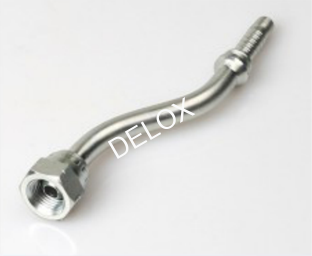

 | Z型 “Z” Type BSP Female Fitting | TX006 |

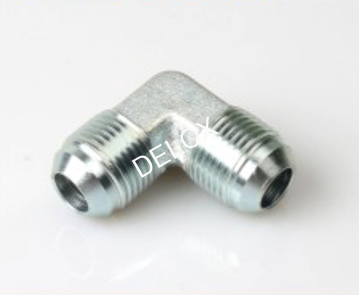

 | 90º弯美制JIC外螺纹74º外锥 90º Elbow JIC Male 74º Cone | 1J9 |

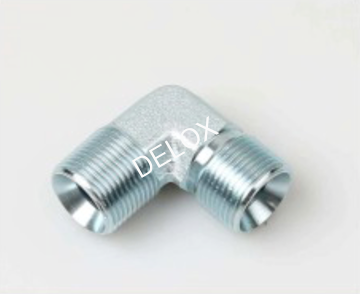

 | 90º弯英管外螺纹60º内锥/英椎管外螺纹 90º Elbow BSP Male 60º Seat/ BSPT Male | 1BT9 |

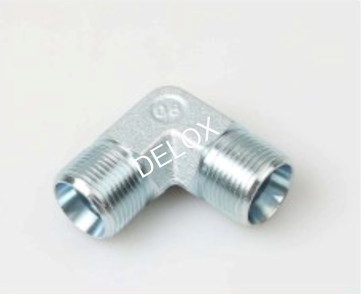

 | 90º公制外螺纹24º内锥面轻/重系列 90º Metric Male 24º Cone Seat L.T./H.T. | 1C9 |

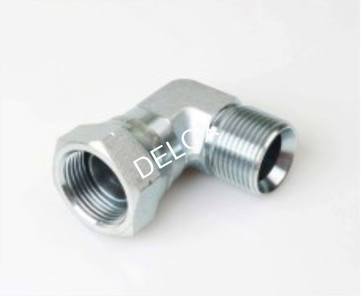

 | 90º弯英管外螺纹60º内锥/ 英管内螺纹60º外锥 90ºElbow BSP Male 60º Seat/ BSP Female 60º Cone | 2B9 |

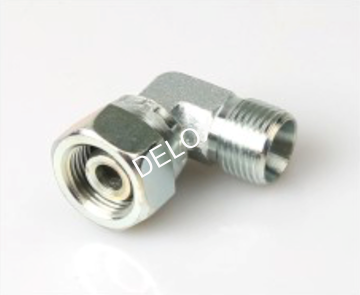

 | 90º弯公制外螺纹内螺纹转换接头24º锥大小头 90º Elbow Reducer Tube Adapter with Swivel Nut 24ºCone | 2C9 |

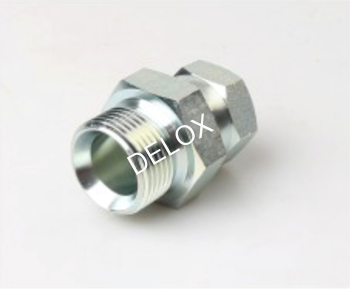

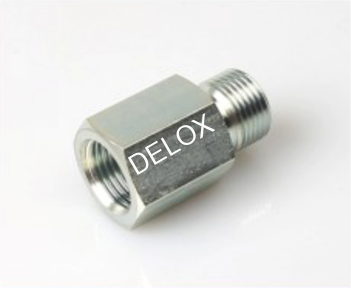

 | 英管外螺纹60º内锥或六角端面用组合垫密封/英管内螺纹60º外锥 BSP Male Doulble Use for 60º Seat or Bonded Seal Plug | 2B |

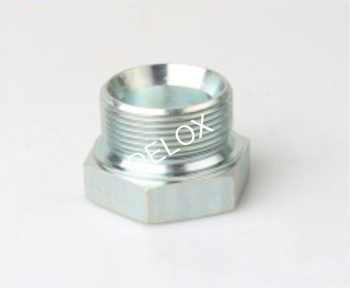

 | 英管外螺纹60º内锥或六角端面用组合垫密封堵头 BSP Male Doulble Use for 60º Seat or Bonded Seal Plug | 4B |

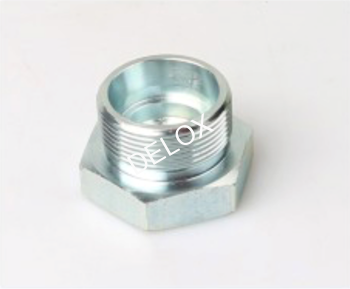

 | 公制外螺纹24º内锥面堵头 Metric Male 24º Cone Seat Plug | 4C |

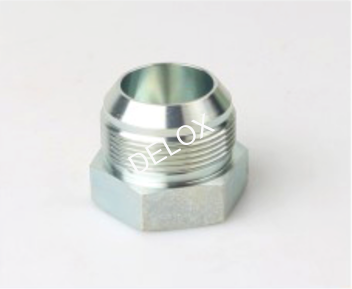

 | 美制JIC外螺纹74º外锥堵头 JIC Male 74º Cone Plug | 4J |

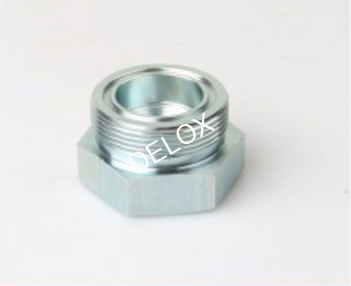

 | 美制ORFS外螺纹O型圈平面密封堵头 ORFS Male O-Ring Plug | 4F |
 | 英管外螺纹60º内锥或六角端面用组合垫密封/英管内螺纹ISO1179 BSP Male Double Use for 60º Seat or Bonded Seal/ BSP Female ISO 1179 | 5B |

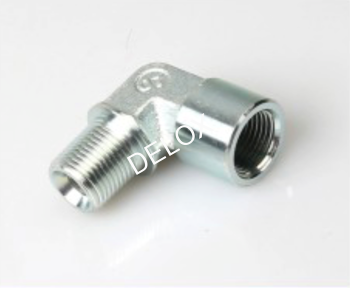

 | 90º弯美制布锥管外螺纹/布椎管内螺纹 90º Elbow NPT Male/ NPT Female | 5N9 |

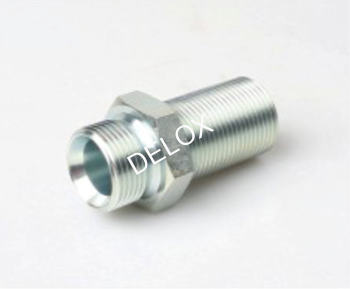

 | 英管外螺纹60º内锥过板接头 BSP Male 60º Seat Bulkhead | 6B |

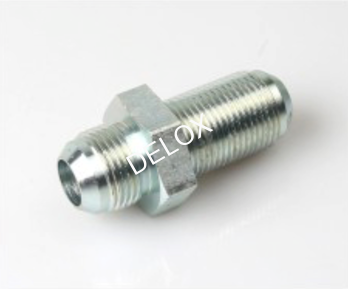

 | 美制JIC外螺纹74º外锥过板接头 JIC Male 74ºCone Bulkhead | 6J |

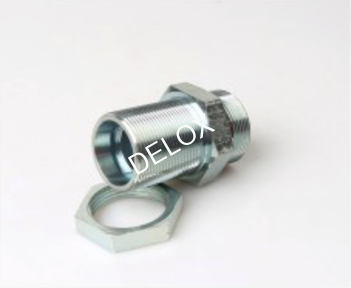

 | 直通过板接头 Straight Bulkhead Fittings | 6C |

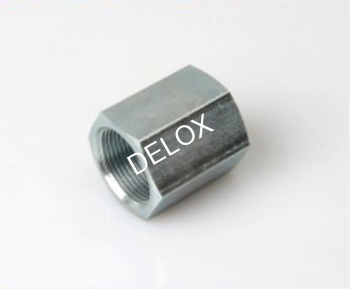

 | 英管内螺纹ISO1179 BSP Female ISO 1179 | 7B |
 | 公制内螺纹24º 内锥面堵头 Matric Female 24º Cone Seat Plug | 9C |

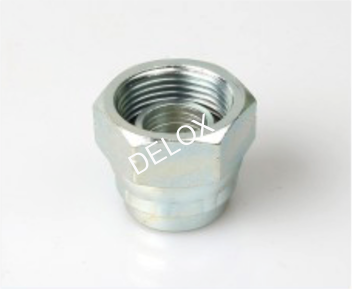

 | 英管内螺纹60º外锥堵头 BSP Female 60º Cone Plug | 9B |
| 更多规格，请联系德璐氏的客服工程师。400-928-6878 | ||
